GitHub Checks

GitHub Checks API allows third-party applications to attach contextual information(status, conclusion, details, annotations) to a GitHub commit. After a successful job, RelativeCI GitHub application adds a Check with status, conclusion and details to the corresponding GitHub commit.

RelativeCI GitHub Check information

When the commit is the last in a pull request, the Check information is also available on the pull request checks section or under the Checks tab:

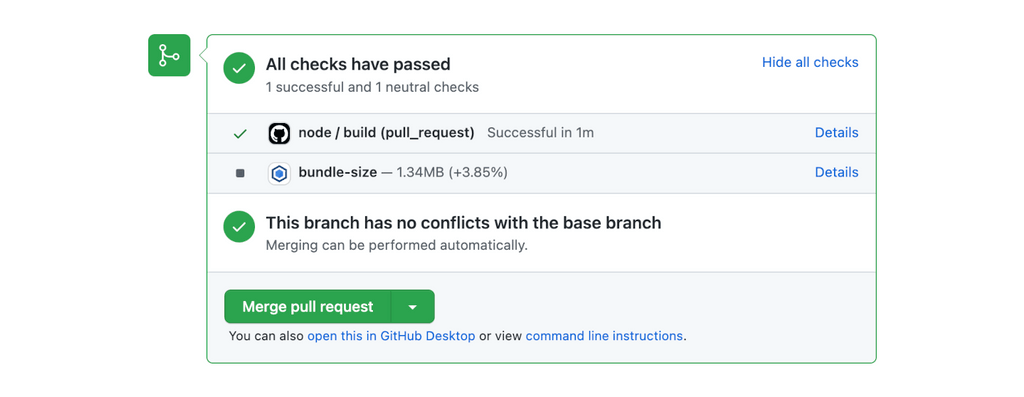

RelativeCI Pull Request GitHub Check information

Click on Details link to navigate to the GitHub Check details report. The report shows the current, the baseline, and the delta values for all generic and file type metrics. Click on the metric label link to navigate to the specific section of the RelativeCI report.

Rule-based GitHub Check conclusion
Beta

GitHub Checks conclusion allows third-party applications to set the result of the check for the current changes. Depending on the conclusion value, GitHub will present a different UI to inform the user about the result of the check:

RelativeCI GitHub Checks conclusions

By default, the GitHub Check conclusion is set to neutral. You can add rules to customize when to set the conclusion to success, action_required or failure.

Manage GitHub Checks rules

Managing project settings functionality is available for users with admin role (project/organization).

To manage the integration rules, navigate to Project -> Settings -> Integrations and go to GitHub Check section. You can add conditions based on any generic metric change(value or procentual):

RelativeCI GitHub Check settings rules

RelativeCI evaluates the conditions for all active rules and sets the GitHub Check conclusion based on the matched rule with the highest severity level.

RelativeCI Pull Request GitHub Check information with rules result

Require GitHub status check pass before merging

By default, GitHub allows users to merge a pull request indifferent to a check conclusion. To prevent merging a pull request that has checks with conclusion failure or action_required, you can add/update a branch protection rule. To manage a branch protection rule, navigate to your GitHub project Settings -> Branches -> Protect matching branches and click Add rule or Edit. Activate Require status checks to pass before merging option and search & select bundle-size check.

GitHub repository settings branches protection rule

When the branch rule matches and the RelativeCI check conclusion is failure or action_requried, GitHub will disable the pull request merge:

RelativeCI failed check with branch rule

Examples

Set check conclusion to Success on Bundle Size decrease:

RelativeCI GitHub Check rules example - success on bundle size decrease

Set check conclusion to Action required on Bundle Size increase with more than 5KB:

RelativeCI GitHub Check rules example - action_required on bundle size increase

Set check conclusion to Failure on Duplicate packages increase:

RelativeCI GitHub Check rules example - failure on duplicate packages increase

Set check conclusion to Action required on Bundle size increase with more than 5KB, or Initial JS increase, or Packages count increase:

RelativeCI GitHub Check rules example - action_required on bundle size increase or package count increase or initial javascript increase
